Product Details
Place of Origin: Shenzhen, China

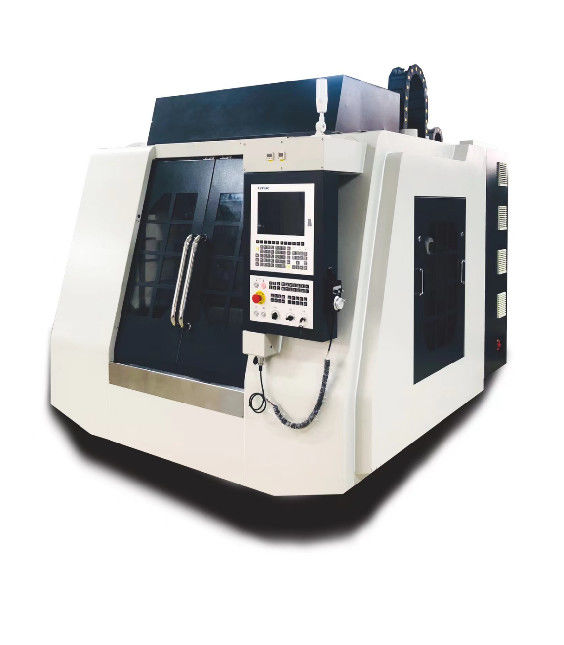

Model Number: Z5-X500-5200
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: Export wooden box
Payment Terms: Western Union
Feed Axis: |
Travel（C Axis) - -30°~385° |
Distance Between Holders: |
200mm |
Feeding Speed: |
Ast Traverse Rate X/Y/Z - 25x25x15(m/min) |
Spindle Rotation Speed: |
0-6000 ( R/min)adjustable |
Precision Accuracy: |
Axis Bidirectional Positioning Accuracy - ±0.025 |
Power: |
380V,12KW |
Compressed Air: |
0.5~0.8Mpa(stablized，dry） |
Dimension: |
Height - 2400mm |
Floor Space: |
2200x2200mm |
Weight: |
Around 2600Kg |
Feed Axis: |
Travel（C Axis) - -30°~385° |
Distance Between Holders: |
200mm |
Feeding Speed: |
Ast Traverse Rate X/Y/Z - 25x25x15(m/min) |
Spindle Rotation Speed: |
0-6000 ( R/min)adjustable |
Precision Accuracy: |
Axis Bidirectional Positioning Accuracy - ±0.025 |
Power: |
380V,12KW |
Compressed Air: |
0.5~0.8Mpa(stablized，dry） |
Dimension: |
Height - 2400mm |
Floor Space: |
2200x2200mm |
Weight: |
Around 2600Kg |
Robot arm, five-axis, grinding and polishing, polishing, mirror surface, wire drawing, sanding, surface treatment, metal
Characteristics
• Two grinding heads in five spindles each, synchronized rotation rate of five spindles, which has high efficiency and can quickly remove surface membrane lines;
• High speed of the motorized spindle grinding heads , which can quickly remove the plastic weld line;
• CNC numerical control system, UG programming tool path, 3D profiling processing, less grinding and removal, stable processing, plastic does not collapse, and the product is not easy to deform;
• Stable quality and high yield for mirror polishing.
• Wet processing without dust explosion hazard.
Advantages
• Eccentric motorized spindle grinding head has high speed and vibration buffer, which is suitable for plastic weld lines grinding. While the concentric motorized spindle plays a good role in polishing aluminum alloy and ceramic products for a mirror finish.
• 5 stations, 4 groups, a total of 20 grinding heads (the front is written as 2 groups) (can be equipped with pneumatic grinding heads / equipped with 4 groups of grinding heads), fast switching, the system controls the entire machine to perform automatic grinding, can be automatic control, monitoring, counting, alarm;
• The surface roughness as low as Ra 0.02 for the mirror finish, high polishing yield.
• UG programming, 3D profiling processing, less grinding and removal, and stable processing quality;
• The surface shall be free of scratch, water ripple and pitting, no concave or convex spots and no foggy crystallization;
• 100% enclosed wet processing, no dust explosion hazard, green environmental protection and safety.
